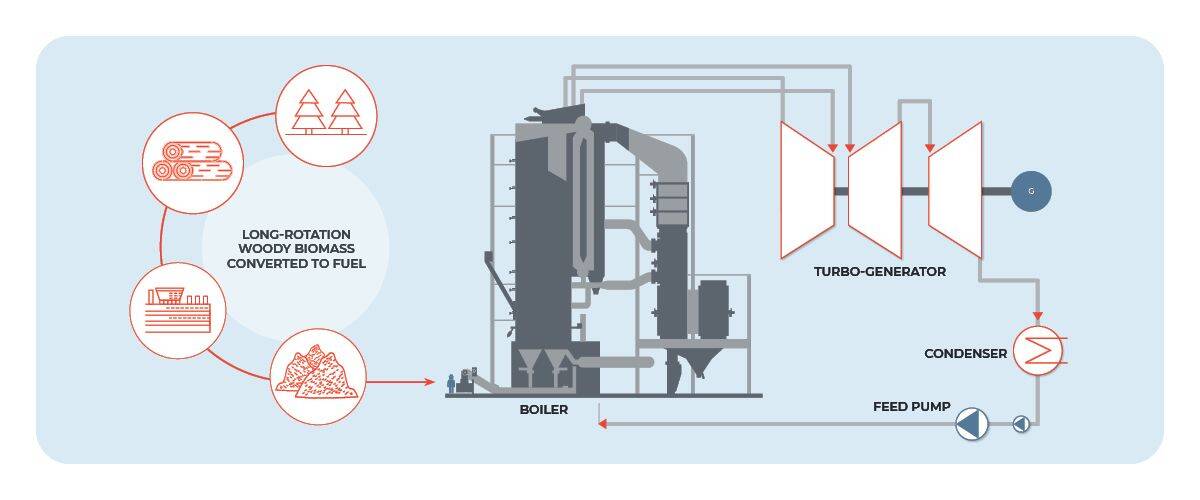

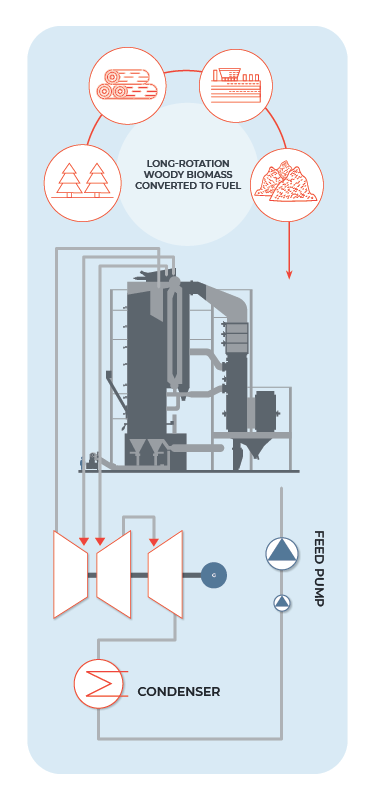

NZ Battery Project - NZ Battery Project Diagram

At time of use, logs are chipped

Logs are stored for usage, and drying occurs.

Trees are harvested, trimmed and debarked

Sustainably managed forest captures solar energy in biomass

Steam generates electricity via turbogenerator

Low pressure steam from turbogenerator is condensed to liquid

Burning chips generates high pressure steam

The pressure of the condensed steam (feedwater) is raised and it is fed to boiler

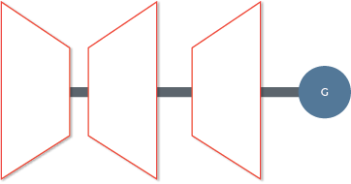

TURBO-GENERATOR

FEED PUMP

CONDENSER

BOILER

LONG-ROTATION WOODY BIOMASS CONVERTED TO FUEL
